Biax Scanner
Biaxscanner

The laser extensometer - type biax-scanner is used for non-contact measurement of strain or compression of specimen at biaxial load.

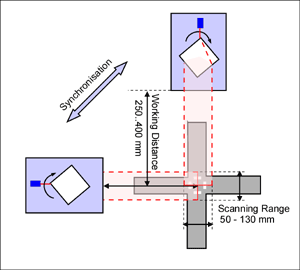

Two laser extensometers of the type parallel-scanner are combined to measure strain in X- and Y-direction. The scanning sequence of the two systems is synchronised to each other. A single receiver with special optical components is used for both scanners.

Technical Data B-50 B-100 B-130
Scanning Range on Specimen 50 mm 100 mm 130 mm
Working Distance 250..400 mm 250..400 mm 250..400 mm
Resolution (micron) 0.1 um 0.25 um 0.3 um
Accuracy (DIN EN 10002-4) Class 0.2; 0.5; 1 Class 0.5; 1 Class 0.5; 1
Scanning Rate 50; 100 Hz 50; 100 Hz 50; 100 Hz
Duration of each Scan at Specimen 5.0 ms 5.0 ms 5.0 ms
Scanning Speed at Specimen 10 m/s 20 m/s 27 m/s
Specimen Surface plane or
structured
(components)
plane or
structured
(components)
plane or
structured
(components)
